AgentScope vs LangGraph vs CrewAI — 2026 Multi-Agent Framework Comparison

AgentScope vs LangGraph vs CrewAI — 2026 Multi-Agent Framework Comparison

In 2026, choosing an AI agent framework has become one of the most frequently asked questions in the developer community.

This article compares the three most popular frameworks using real data and code examples:

• AgentScope — Alibaba's agent-oriented programming framework
• LangGraph — LangChain's graph-based workflow engine
• CrewAI — Role-based multi-agent orchestration

1. 30-Second Summary

2. Architecture Comparison

AgentScope: Agent-Oriented Programming

AgentScope's philosophy is Agent-Oriented Programming (AOP) — treating agents as first-class objects.

from agentscope.agent import ReActAgent, UserAgent
from agentscope.model import OpenAIChatModel
from agentscope.memory import InMemoryMemory
from agentscope.tool import Toolkit, execute_python_code
import asyncio

async def main():
    toolkit = Toolkit()
    toolkit.register_tool_function(execute_python_code)

    agent = ReActAgent(
        name="Friday",
        sys_prompt="You're a helpful assistant.",
        model=OpenAIChatModel(model_name="gpt-4o", api_key="..."),
        memory=InMemoryMemory(),
        toolkit=toolkit,
    )
    user = UserAgent(name="user")

    msg = None
    while True:
        msg = await agent(msg)
        msg = await user(msg)

asyncio.run(main())

Key characteristics:

• Fully async/await architecture — every agent call is asynchronous
• ReActAgent — built-in reasoning + action loop

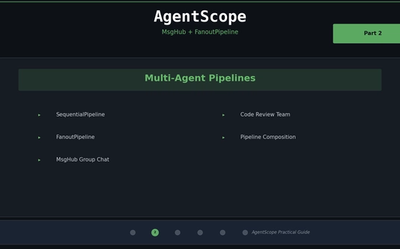

• Pipelines — compose agents with SequentialPipeline, FanoutPipeline
• MsgHub — broadcast-based group conversations

LangGraph: State Graph Machine

LangGraph models agent workflows as directed graphs.

from typing import TypedDict
from langgraph.graph import StateGraph, START, END
from langchain_openai import ChatOpenAI

class State(TypedDict):
    topic: str
    research: str
    draft: str

llm = ChatOpenAI(model="gpt-4o")

def researcher(state: State) -> dict:
    result = llm.invoke(f"Research: {state['topic']}")
    return {"research": result.content}

def writer(state: State) -> dict:
    result = llm.invoke(f"Write using: {state['research']}")
    return {"draft": result.content}

graph = StateGraph(State)
graph.add_node("researcher", researcher)
graph.add_node("writer", writer)
graph.add_edge(START, "researcher")
graph.add_edge("researcher", "writer")
graph.add_edge("writer", END)

app = graph.compile()
result = app.invoke({"topic": "AI agents"})

Key characteristics:

• StateGraph — define state schemas with TypedDict/Pydantic
• Nodes — Python functions that read and write state
• Conditional Edges — dynamic branching based on state
• Checkpointing — automatic persistence to Postgres/SQLite

CrewAI: Role-Play Teams

CrewAI defines agents as team members with roles, goals, and backstories in natural language.

from crewai import Agent, Task, Crew, Process

researcher = Agent(
    role="Senior Researcher",
    goal="Research thoroughly on {topic}",
    backstory="Expert research analyst with 10 years of experience"
)
writer = Agent(
    role="Technical Writer",
    goal="Write clear, engaging articles",
    backstory="Experienced tech writer specializing in AI"
)
research_task = Task(
    description="Research {topic}",
    expected_output="Detailed research notes",
    agent=researcher
)
write_task = Task(
    description="Write article from research",
    expected_output="Publication-ready article",
    agent=writer
)
crew = Crew(
    agents=[researcher, writer],
    tasks=[research_task, write_task],
    process=Process.sequential
)
result = crew.kickoff(inputs={"topic": "AI agents"})

Key characteristics:

• Agent = Role + Goal + Backstory — natural language personas
• Task — description + expected output + assigned agent
• Crew — agent team with Sequential or Hierarchical process
• Delegation — agents can delegate subtasks to each other

3. Feature Comparison

3-1. LLM Support

All three frameworks support major LLMs. AgentScope has the deepest DashScope (Alibaba) integration, while LangGraph has the broadest via LangChain.

3-2. Multimodal

AgentScope dominates multimodal. It supports Realtime APIs from OpenAI, Gemini, and DashScope, plus 6 TTS model variants.

3-3. Memory System

3-4. Protocol Support

AgentScope is one of the few frameworks with official Google A2A protocol support.

3-5. Production Deployment

4. Learning Curve

Easy ◄────────────────────────────────────► Hard

CrewAI           AgentScope          LangGraph
  │                  │                    │
  ▼                  ▼                    ▼
Define roles       Agent + Pipeline    StateGraph design
Natural language   async/await needed  Nodes/Edges/State
10min quickstart   20min quickstart    30min+ quickstart

5. Ecosystem Scale

AgentScope Ecosystem (19 repos)

Total ecosystem stars: 46K+ — while the core is 22K, the full ecosystem matches CrewAI-level adoption.

LangGraph Ecosystem

• LangChain (97K+ stars) — parent framework
• LangSmith — monitoring/tracing platform
• LangGraph.js (2.7K stars) — TypeScript implementation
• LangChain Academy — free courses

CrewAI Ecosystem

• crewai (48K stars) — core + tools monorepo
• Crew Control Plane — monitoring platform
• learn.crewai.com — certification program (100K+ developers)

6. Hidden Costs and Gotchas

AgentScope

• DashScope bias — heavy Alibaba service dependency for TTS, multimodal embeddings
• Async-only — no synchronous API; even simple scripts need asyncio.run()
• Chinese-leaning docs — some issues and documentation in Chinese
• Python 3.10+ — no 3.9 or earlier support

LangGraph

• LangChain dependency — langchain-core is a required dependency
• Boilerplate — even simple tasks need state schemas, nodes, and edge definitions
• Debugging difficulty — hard to trace state transitions in complex graphs without LangSmith
• Postgres checkpoint SSL issues — long-standing unresolved bug

CrewAI

• Heavy dependencies — ChromaDB, LanceDB, OpenTelemetry bundled in core. Package size 968KB vs LangGraph's 168KB
• Default telemetry — collects agent roles, tool names by default (must be disabled)
• OpenAI hard dependency — openai package required even when using other providers
• PR backlog — 387 open PRs suggesting potential review bottleneck

7. Decision Guide

Choose AgentScope when:

• Building realtime voice agents
• Need A2A protocol for cross-framework agent communication
• Primarily using Alibaba DashScope/Qwen ecosystem
• Want RL fine-tuning to improve agent performance
• Building multimodal agents (image + voice + text)

Choose LangGraph when:

• Complex branching logic in workflows
• Checkpointing/recovery is a core requirement
• Frequent human-in-the-loop interactions
• Already using the LangChain ecosystem
• Building agents in TypeScript

Choose CrewAI when:

• Rapid prototyping is the priority
• Team members are new to LLM/agents
• Role-based multi-agent scenarios (research team, content team)
• Need a demo with minimal code
• Want YAML-based agent configuration

8. Final Comparison Matrix

Conclusion

These three frameworks solve different problems in different ways:

• AgentScope = Research-oriented + multimodal + for developers who want to design agent systems from scratch
• LangGraph = Production-oriented + complex state management + for LangChain users
• CrewAI = Quick start + intuitive API + team-based agent scenarios

There is no "best framework." The best one is the one that fits your use case.
